TMT Bar Threading Machine or Rebar Threading Machine
Before I start writing something about our Rebar Thread Cutting Machine, being a common man, I would advise all the buyers of Rebar Threading Machine to please sit for some time with a paper and a pen and run your brain on what are the main specifications that you need in your rebar thread cutting machines. Why I am advising this simply because a TMT bar thread cutting machine which suits your requirements is the best to buy. Apart from this, another piece of advice that I would render for free is to buy a bar threading machine as per your customization requirements, it is always good to approach some experience bar thread cutting company in India.
VIEW SPECIFICATIONSAvailable Options
Specifications

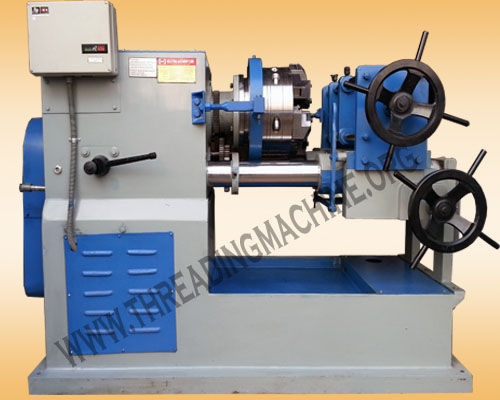

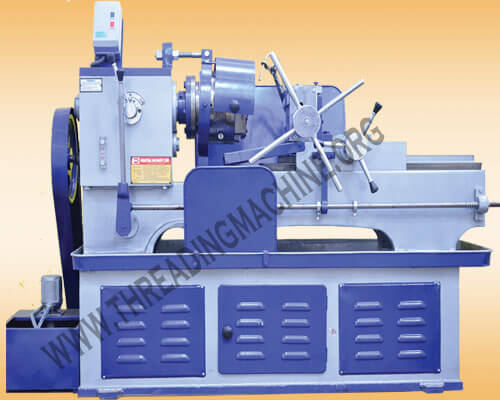

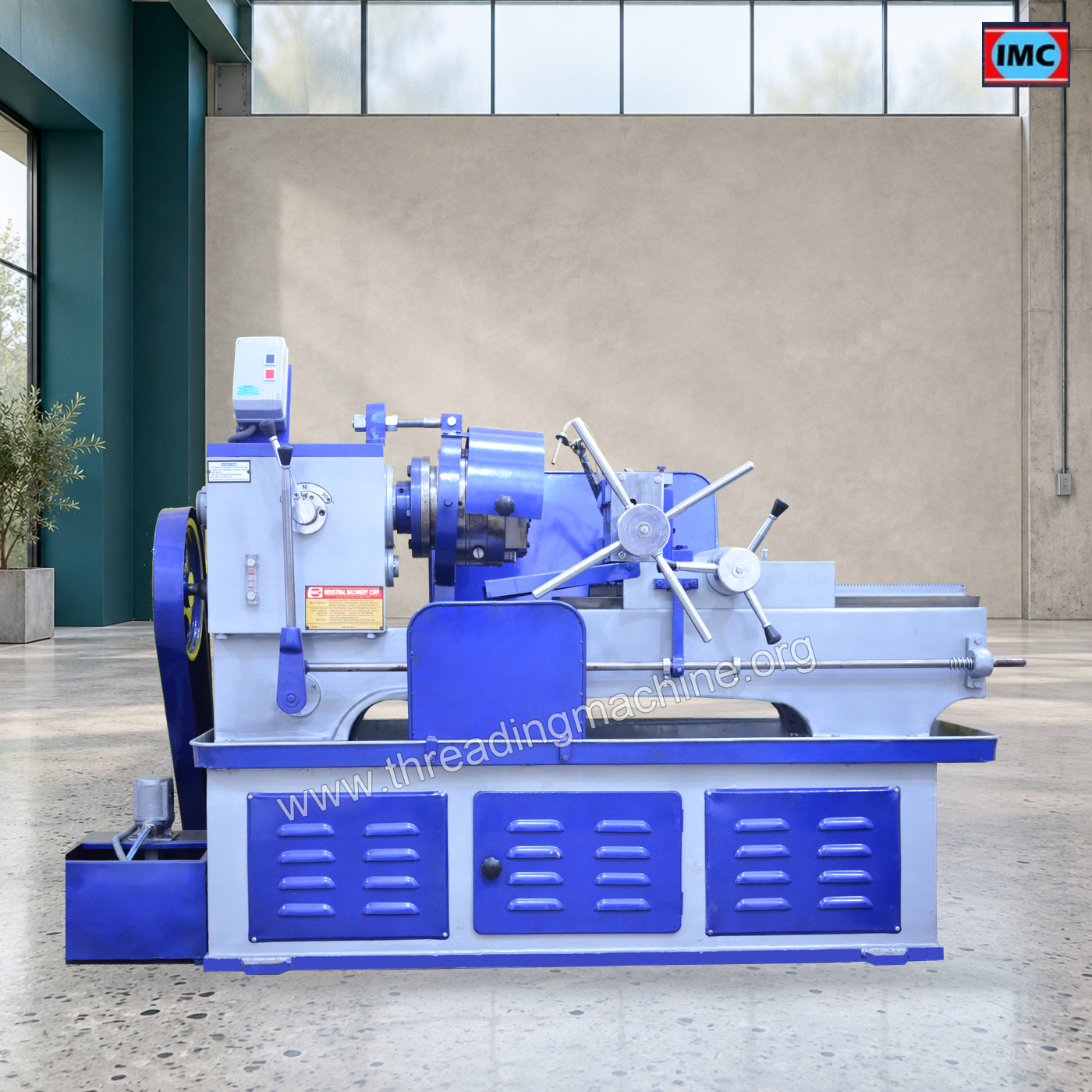

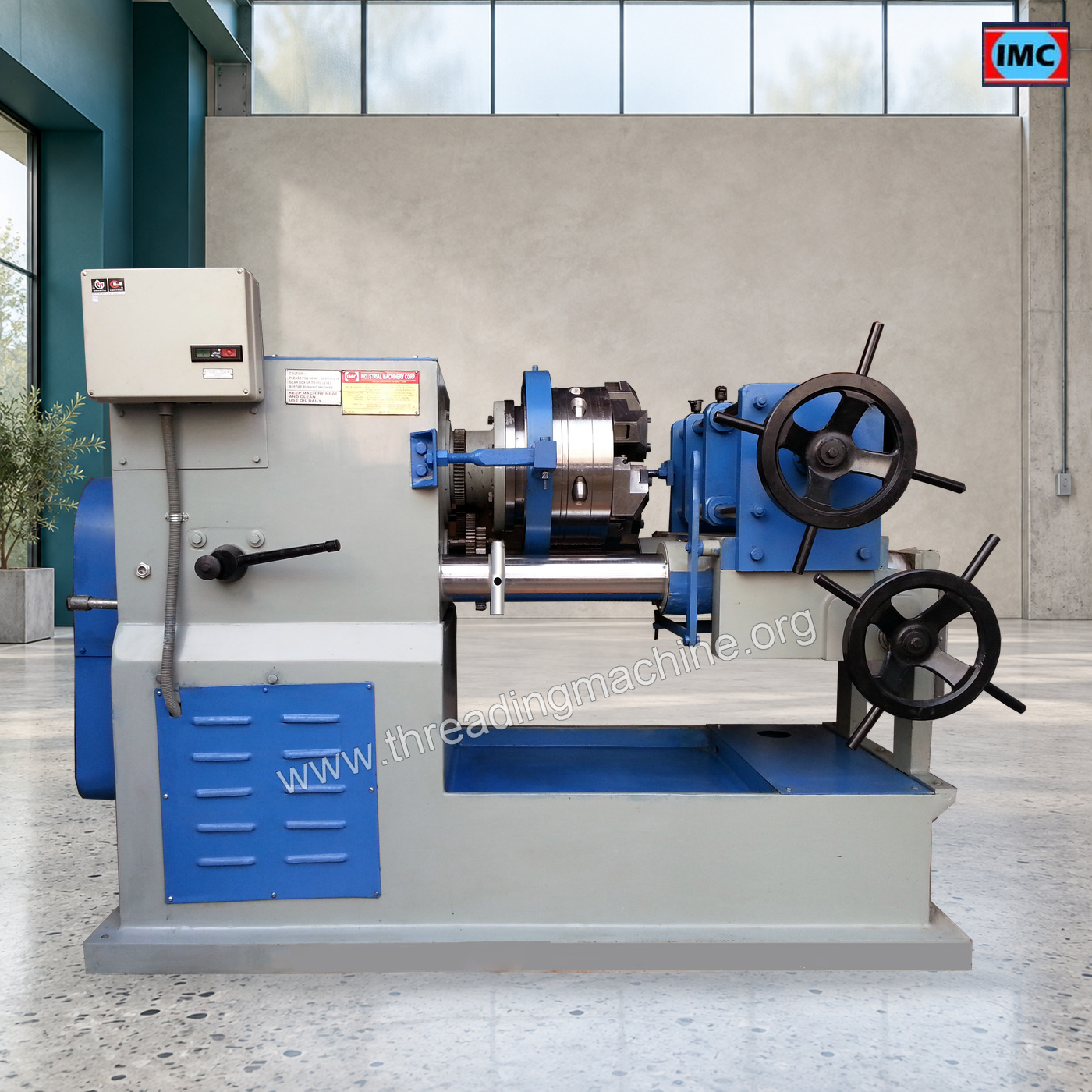

TMT Bar or Rebar Threading Machine
As far as experienced rebar threading company in India is concerned, there is no second name for industrial machinery corporation. Industrial Machinery Corporation has been in the business of Rebar Threading Machine manufacturing for more than a decade and has gained much-needed experience and skills to make this machine. With its manufacturing unit based in Ludhiana, we have more than six years of experience in making the best quality Rebar Threading Machine. We have been serving all our clients with the best industrial machines and not only this; we have been giving exceptional after-sales service, in case, any of our machines face any technical problem which is very atypical. Every three to four months, we reassess all our machines and see if they are working fine to produce the best quality bar thread cutting machine further to maintain the quality of our bar thread cutting machine we make sure that this machine is made keeping all the international standards and parameters in mind just. Post-production our quality supervision team checks all our machines for all post-production defects as well as durability, strength, robustness, efficiency, and versatility. Once found perfect only then our machine is packaged and delivered to our clients. While manufacturing bar Threading Machines, we ensure that only the raw material is used which has surpassed various quality checks before entering our manufacturing unit. For all these 8 years of being in business, we have always kept our production standards very high and ensured that there is no flaw in the entire process.
Our Rebar Threading Machine works on the casing method using HSS Tangential chasers and has the capability to cut a huge variety of threads. The main point herein is that this machine depends upon different types of chasers to cut a variety of threads.
Listed below are the main parameters of TMT bar thread cutting machine that we manufacture here at Ludhiana based manufacturing base:
- Rebar Diameter:16-40mm
- Motor:4KW
- Electricity: Three phase
- Phase: 380V 50HZ
- Main Shaft Speed: 40-62r/min
- Max Length: 80mm
- Net Weight: 420kg
- Packing Specification: 1190X730X1200m.m
- Matric
- BSP
- BSPT
- NPT
- UNF
- UNC
- BSW
- Acme Threads
- B.S.F
- Base
- Head Stock
- Saddle

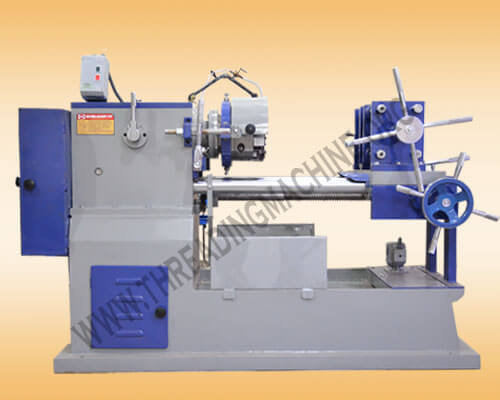

- Bed or Pillar Type Clamping Vice
- Die Head
TMT Bar or Rebar Thread Cutting Machine Specifications:
| MODEL | 1/4" TO 1" (BED TYPE) | 3/8" TO 1.1/2" (BED TYPE) | 1/2" TO 2.1/2" (BED TYPE) |
| Saddle Movement | 10" | 13" | 22" |
| Spindle Speed Range | 75-140 | 75 -140 | 45 - 90 |
| Number of Spindle Speed | 2 | 2 | 2 |
| Threading Capacity | 1/4" to 1" | 3/8" to 1.1/2" | 1/2" to 2.1/2" |
| Production per Hour | 60-80 | 60-80 | 70-90 |
| H.P. Required | 3 H.P. | 3 H.P. | 7.5 H.P. |
| Lead Screw | Optional | Optional | Optional |
| Weight (KG) Approx. | 500 | 550 | 990 |

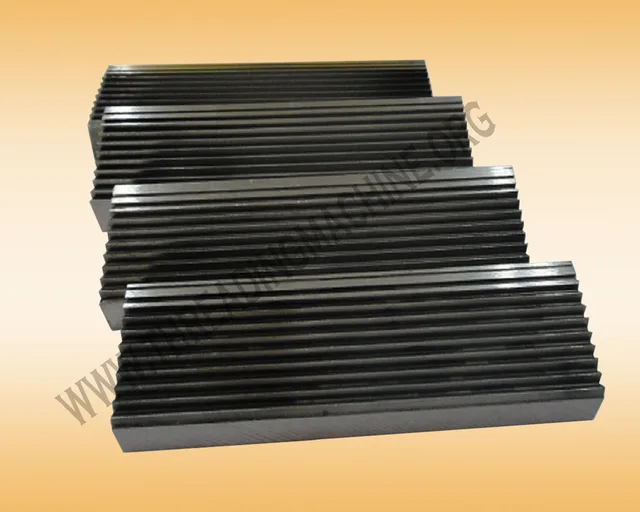

Rebar Threading Machine Tangential Chaser
IMC Tangential Chasers are manufactured from imported High-Speed Steel which must pass exacting metallurgical standards. Experienced heat treatment with the automatically imported heat treatment plant and imported Testing equipment, assures that they will perform satisfactorily in service and produce quality threads within the tolerance for which they ware intended.
IMC Chaser is interchangeable. If one Pc. Of a chaser, the set is damaged & is beyond use. Then same No. pc. of the other chaser set lying in stock may be used and there will not be any difference in threading performance and the damaged set can be replaced without the necessity of replacing the entire set.
Read More..
