How Lanco Type Threading Chasers Work

Lanco Type Pipe And Bolt Threading Tangential Chaser Die by Industrial Machinery Corporation

Lanco Type Pipe And Bolt Threading Tangential Chaser Die by Industrial Machinery Corporation thumbnail

This guide explains the working process and selection of Lanco Type Threading Chasers Work.

Understand the working process

The purpose of this configuration is to cut external threads when a matched tangential chaser set is fitted to a compatible die head. Matched chasers are located in the compatible die head. Their cutting edges remove material to produce the required external thread profile. The process begins with a suitable component or starting stock and a defined result. Before selecting equipment, identify die-head make or model, chaser dimensions, workpiece material and thread designation. These requirements establish the operation to be performed and the information needed for the setup.

Review the setup sequence

The tooling and holding discussion includes chaser seating, cutting profile and the interface with the specified Lanco or other head. Check compatibility and the supplied operating guidance before starting a new job or changing a component size. Lanco type compatibility is model-specific; provide existing tooling dimensions rather than treating the name as a universal fit. Preparation and any following production stage must be considered separately where the finished component needs additional work.

Check the result and select the model

The component review should cover a representative thread, required gauge fit and the condition of the cutting edges. Agree the inspection requirements for a representative sample before comparing output estimates. Consult the specifications below and discuss the drawing and material with IMC. Select the available options and use the Quote List to request a configuration with clearly identified tools and accessories. This working overview supports selection; follow the instructions supplied for the actual machine.

Information to send with your enquiry

Die-head make or model
Chaser dimensions
Workpiece material and thread designation

To review your application, send IMC your component drawing and requirements. You can also compare related machines and tooling in the product range.

VIEW SPECIFICATIONS

Available options

Select the required options and add this machine to your quotation.

Available Options

Chaser Size

5" x 2.1/4" (Set of 4 Pcs)

4" x 1.1/4"(Set of 4 Pcs)

4" x 1.3/64 (Set of 4 Pcs)

3" x 1.3/64 (Set of 4 Pcs)

5" x 2.1/4"(Set of 6 Pcs)

Quantity Required

Expected Price

Thread Type

Purchase

Review your selected machine and options in the Quote List before sending your requirement.

VIDEO REFERENCE

Machine Videos Gallery

No product-specific playlist is stored for this item yet. View IMC machine demonstrations and production videos in the main gallery.

View Machine Videos

TECHNICAL DATA

Technical Specifications

Model data and technical details supplied for this product. Final configuration can be confirmed against your application.

Lanco Type Pipe And Bolt Threading Tangential Chaser Die

Industrial Machinery Corporation (IMC) proudly offers a comprehensive range of Lanco Type Tangential Chaser Dies, engineered to meet diverse threading needs. From pipes and bolts to bars, rebar, rods, PVC, and scaffolding pipes, our threading chasers are designed for exceptional versatility and precision. As one of India’s leading steel tangential chaser suppliers, we combine advanced engineering with rigorous quality standards to deliver outstanding performance.

Key Features

Premium Material
Crafted from imported, high-speed steel that adheres to stringent metallurgical standards, ensuring exceptional strength, durability, and wear resistance.
Precision Engineering
Manufactured to comply with international threading standards, enabling the creation of accurate, fine threads with ease.
Threading Capabilities
IMC threading tangential chasers can cut a variety of thread types, including:
- BSP
- BSPT
- NPT
- UNF
- UNC
- BSW
Customizable Lengths
Available in various lengths ranging from 1” to 6”, depending on the size of the die head, to suit your specific threading requirements.
Interchangeability
IMC threading chasers are interchangeable, allowing individual pieces to be replaced without the need to replace the entire set. This reduces downtime and cost, ensuring consistent performance.

Advanced Manufacturing Process
Our threading chasers undergo precise heat treatment using imported, automated equipment to achieve optimal hardness and toughness. Each die is rigorously tested to ensure it delivers quality threads within specified tolerances and withstands demanding applications.

Why Choose IMC Lanco Type Tangential Chaser Dies?

High-performance threading for pipes, bolts, rods, and more.
Designed for compatibility with a wide range of threading machines.
Manufactured for consistent accuracy and long service life.
Backed by IMC’s commitment to quality and customer satisfaction.

For superior tangential chaser dies that combine innovation, quality, and reliability, choose Industrial Machinery Corporation – your trusted partner in threading solutions.

Frequently Asked Questions About Lanco Type Pipe And Bolt Threading Tangential Chaser Die

How do I order compatible tangential chasers?

Identify the die head and chaser dimensions, together with the required thread and workpiece material. A sample or clear tool photograph is useful.

What should I send when enquiring about lanco type pipe and bolt threading tangential chaser die?

Include die-head type, material and thread form, the finished component drawing and the quantity you intend to produce. These details help IMC review the machine and tooling together.

What operation does this lanco type pipe and bolt threading tangential chaser die support?

Tangential chasers provide the cutting profile when fitted to a compatible threading die head.

RELATED PRODUCTS

Threading Taps

This guide explains the working process and selection of Threading Taps Cut Internal Threads. Understand the working processThe purpose of this configuration is to cut internal threads in appropriatel ...

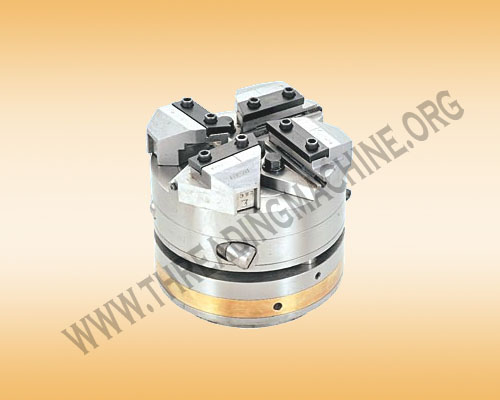

Lanco Type Threading Die Head
