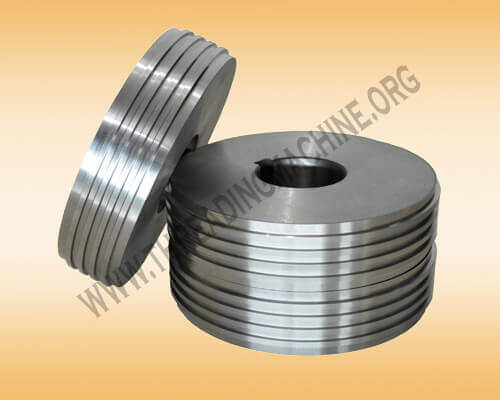

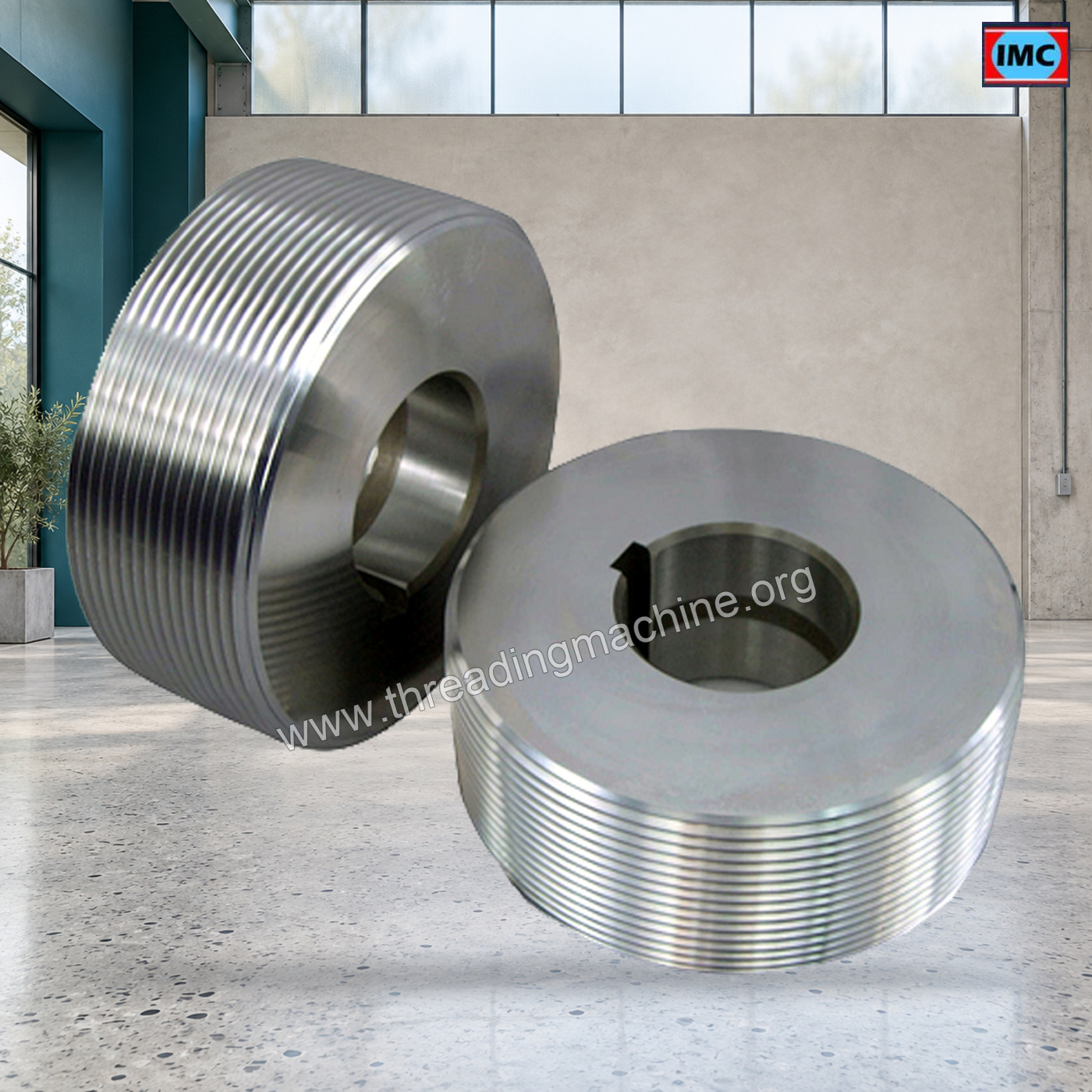

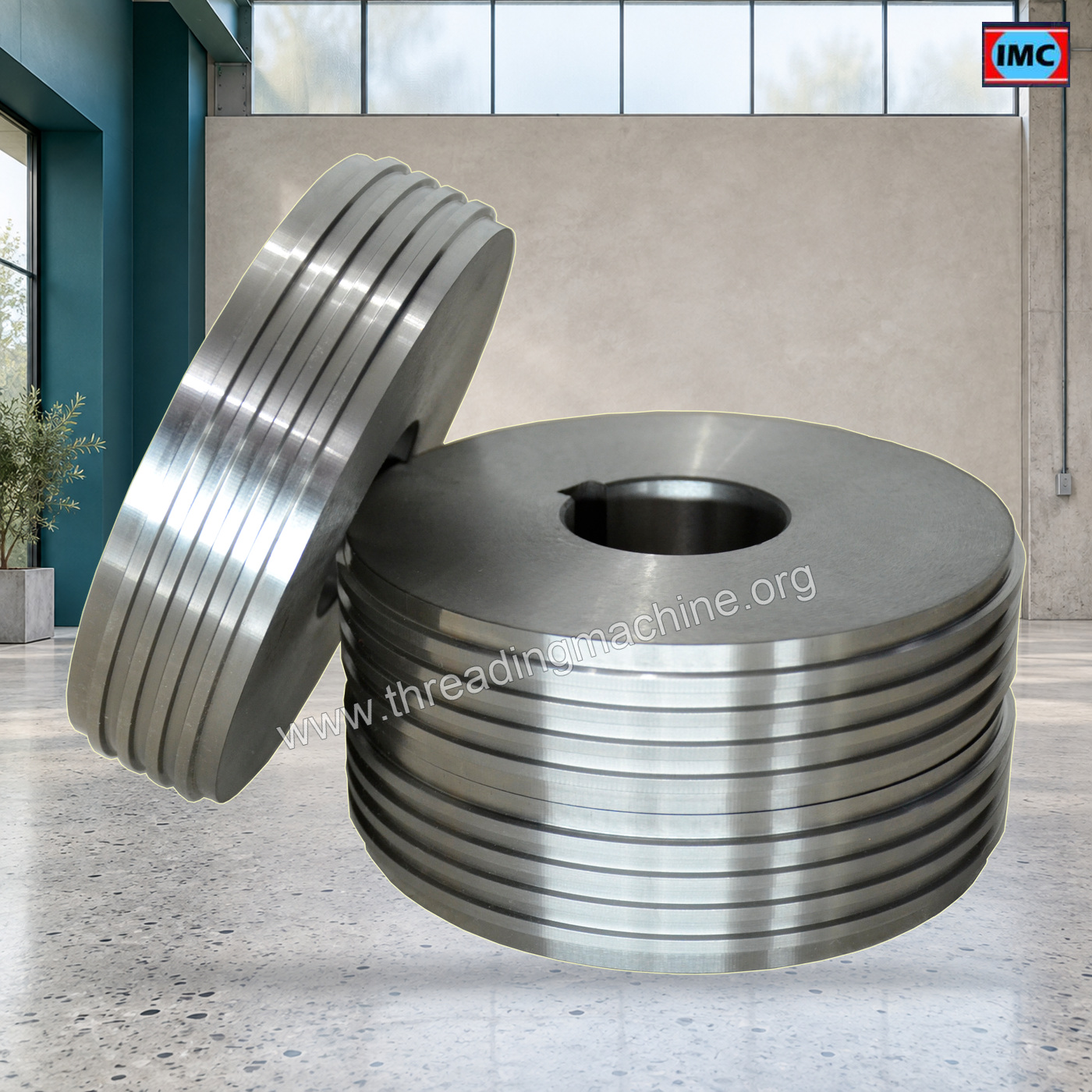

How Circular Thread Rolling Dies Work

This guide explains the working process and selection of Circular Thread Rolling Dies Work.

Understand the working process

The purpose of this configuration is to form the required thread profile on compatible rolling equipment using matched circular dies. The circular die profiles displace suitable blank material as the component rolls between them; infeed and through-feed require their respective arrangements. The process begins with a suitable component or starting stock and a defined result. Before selecting equipment, identify machine model, die mounting dimensions, blank material and finished thread drawing. These requirements establish the operation to be performed and the information needed for the setup.

Review the setup sequence

The tooling and holding discussion includes bore and mounting interface, two- or three-die arrangement and infeed or through-feed selection. Check compatibility and the supplied operating guidance before starting a new job or changing a component size. Infeed and through-feed arrangements have different setup requirements; identify the intended thread length and feed method. Preparation and any following production stage must be considered separately where the finished component needs additional work.

Check the result and select the model

The component review should cover the rolled thread profile, gauge acceptance and die compatibility on the machine. Agree the inspection requirements for a representative sample before comparing output estimates. Consult the specifications below and discuss the drawing and material with IMC. Select the available options and use the Quote List to request a configuration with clearly identified tools and accessories. This working overview supports selection; follow the instructions supplied for the actual machine.

Information to send with your enquiry

• Machine model
• Die mounting dimensions
• Blank material and finished thread drawing

To review your application, send IMC your component drawing and requirements. You can also compare related machines and tooling in the product range.
